AC1200 High Power Outdoor Wireless Access Point Weatherproof WiFi Range Extender with POE Dual Band 2.4G&5.8GHz 802.11AC Wireless WiFi Access Points/Repeater/Router/Bridge Mode, 2x5dBi Antenna

Price: $109.99
(as of May 16, 2025 09:59:52 UTC – Details)

Welcome to JOOWIN Store and wish you a good experience. Further help via: YIYUANUS@163.com

JW-EW74 INSTALLATION GUIDANCE:
1. Assemble the AP device.

2. Set the computer to obtain the IP address automatically and connect the LAN port of the device to the computer to enter the management page.

3. The device is defaulted to the interface “Repeater Mode”. The steps to enter the setup page as follows:
(1) Under default configuration, power on the device and wait for the device to start for 90 seconds.
(2) Connect device wireless SSID (default is JOOWIN_EW74)
(3) Open the computer browser, and input 192.168.10.1 to get into the device login page (Default password: admin).

4. When getting into the setting page, there are four working modes in the Wizard: AP Mode, Bridge Mode, Router Mode, Repeater Mode.

5. Click “AP Mode” and set up IP address and subnet mask. The IP address and subnet mask should be within the same network segment as upper network and can not conflict with IP address from upper network router. After settings, you can visit the device from the IP address you have set just now by connecting internet with WAN port of the device or POE adapter LAN port.
① Note: In “AP Mode”, the IP address from the other devices connected the AP will be allocated by the super network router.
② The AP needs to set an intranet IP address (do no set the same IP address as the upper router). If you want to manage the device, manually set the IP address of the same network segment of the intranet IP.

eg: AP Mode: You can set up 2.4G/5.8G wireless SSID, password, channel and country in advance. After setting up, the device’s WAN port or POE adapter LAN port connected Internet, other mobile devices can connect the SSID to surf the internet.
(Note: The SSID in WiFi Unification supports 2.4G and 5.8G simultaneous connection)

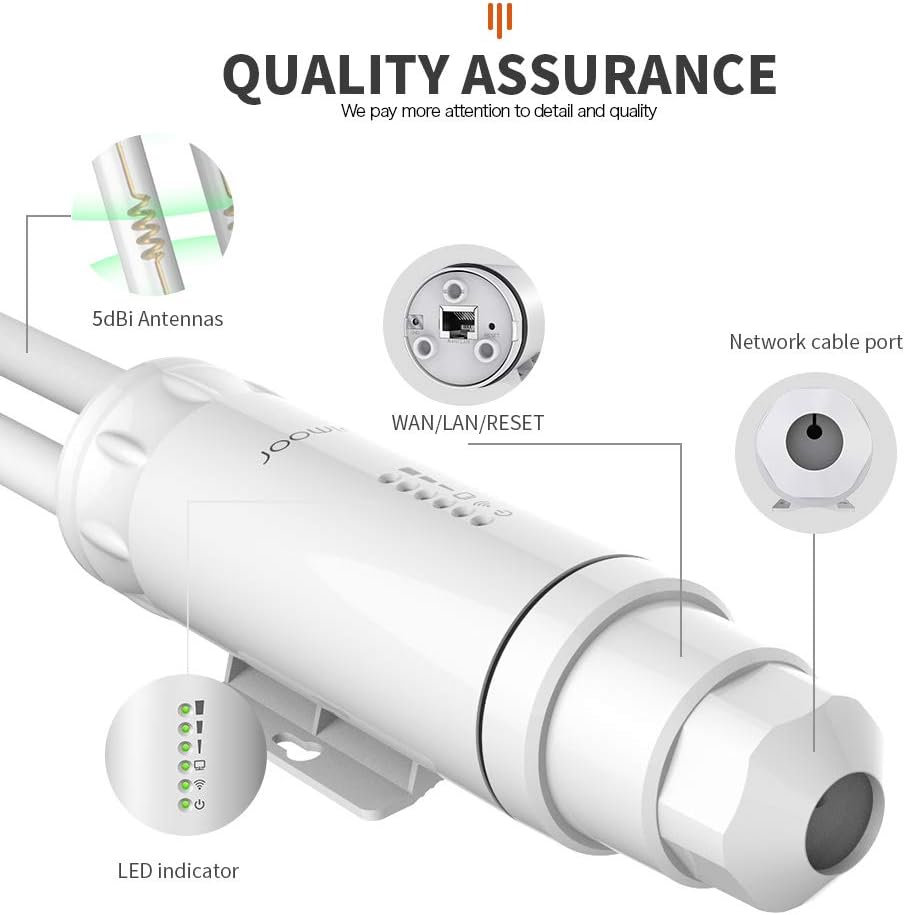

📶【High Power Outdoor Access Point】500mW transmit power, up to 300 feet radius coverage range and performance speed up 50% with the support of 2x5dBi antennas and dual chip+PA, JW-EW74 gets a perfect performance in long-distance.
🌐【Dual Band & High Transmission】Speed up to 2.4GHz 300Mbps and 5.8 GHz 867Mbps, high power transmission breaking down the range limitations of WiFi. Say goodbye to the signal latency and slow wifi speed. (wired connection: 10/100mbps port)
🔌【Powered by Passive PoE Flexibly】Original PoE Power (PoE Adapter Included) over Ethernet support for flexible deployment. NOTE: the outdoor access point only support powered by 24V POE since it will be burnt out when powered by 48V POE.
🔧【Security and Easy Installation】Provides WEP, WPA/WPA2.WPA-PSK /WPA2-PSK for your data security. Simple installation, can be pole or wall mounted. (Note: It’s recommended that install in a empty place with few obstacle)
💻【4 Modes & Support 64 Devices】JW-EW74 supports AP, Router, Bridge, repeater mode. It can meet your all network requirements in different environment. Support 64 devices to connect at the same time, stable and more efficient.
