AC1200 Outdoor Weatherproof WiFi Range Extender High Power Long Range Wireless Internet Signal Extender Booster Support AP/Repeater/Router/Bridge Modes, Dual Band| 5GHz&2.4GHz| PoE Powered

Price: $89.99
(as of May 18, 2025 12:44:11 UTC – Details)

Product Description

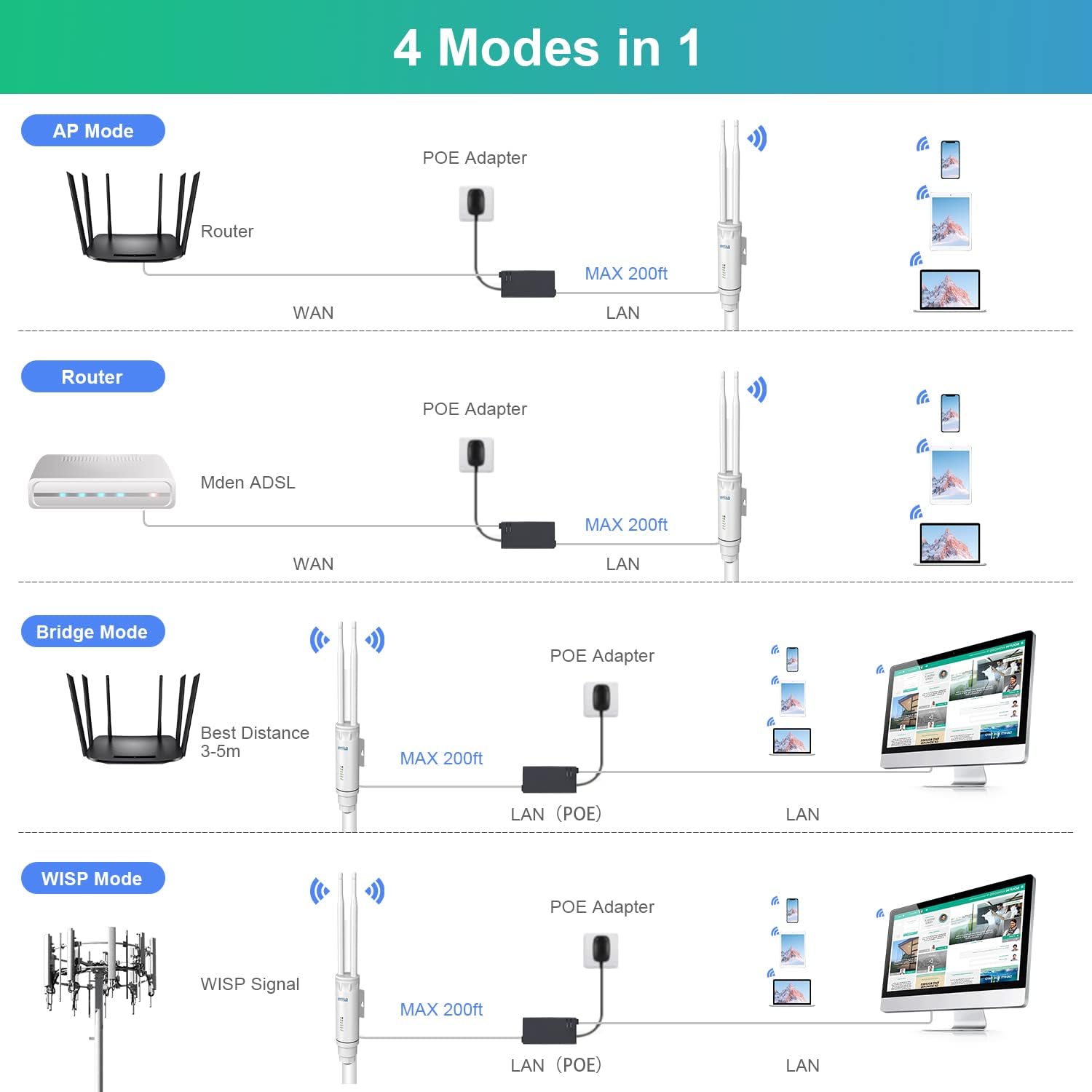

“AP mode” Setup Steps (wired connection with your router)

I. Install AP product and power it by original 24V 0.5A POE adapter. Then select “BYGLO” wifi and connect it. (do not connect POE adapter LAN port with your router now to avoid IP conflict)

II. Open the browser and enter “192.168.10.1” to login menu. Default login password：admin

III. Select “AP Mode” and begin to setup. The IP address should be the same network segment with the upper network. E.g. my router IP is: 192.168.1.1, so I should set “192.168.1.x” here (can’t be 192.168.1.1 ，cann’t IP conflict with other devices).

IV. Set the corresponding parameters and save settings. Wait about 2 minutes(AP configure itself program), then connect the POE adapter LAN port with your router LAN port by a network cable. All set completed.

Now you can re-connect wifi “BYGLO” and surf the internet in larger range.

Note:

1. After set up successfully, you need to enter “192.168.1.x” (depends on the IP you set earlier in step III) to enter the menu page.

2. POE adapter structure is not waterproof.

What in the box 1x Outdoor WiFi Extender 1x POE Power Adapter 1x Networking Cable 1x Metal Cable Ties 2x Screw Fittings 1x Product Instruction

Outdoor Access Point

Easily mounted on a pole

Simply thread the metal cable ties through the holes and secure it with screws.

Port: 1 x WAN/LAN RJ45 Port, 1x Reset Port LED: 1 x WAN/LAN 1 x Power 1 x WiFi 3 x Signal Power Supply: DC24V / 0.5A Power over Ethernet Wireless Standards: IEEE 802.11ac/a/b/g/n Wireless Security: WPA, WPA2, WPA-PSK, WPA2-PSK, AES, TKIP, MAC

High-quality PA Chip

Dual-core Chip

RAM: 64MB

FLASH: 8MB

High-tech dual chip for stable WiFi access in your yard, lawn, garden, etc.

High WiFi Speed

Say goodbye to the signal latency and slow wifi speed. AC1200 speed up to 2.4GHz on 300Mbps and 5.8 GHz on 867Mbps, high power transmission will provide a fast internet access for you.

Multi-user Access

If you need multiple people to access the Internet together and are setting up an event in an outdoor setting, this product would be a good choice.

🏚BYGLO outdoor wifi extender adopts IEEE802.11ac WiFi standard and dual band technology with 5G(867Mbps) and 2.4 GHz(300Mbps), supporting up to 64+ users to connect with. Two high gain antennas and 500mW high transmit power can reach 300ft long distance in a open place. You can get wifi coverage at your yard, garden, lawn, farm and garage etc.
🌧️Outdoor WiFi Extender adopts IP66 level grade weatherproof technology, effectively keeping this device working normally in all kinds of harsh environments such as wind, frost, rain, and snow. Special temperature resistant materials design makes working temperature (-10℃~45℃)(14°F~113°F). It is very suitable for applications such as front and backyards and docks.
🔌BYGLO outdoor AP comes with one WAN/LAN Ethernet ports for access point mode and router mode settings. The POE port only support 24V 0.5A POE power supply, so the 48V POE would be unavailable. With the cable connection, you can make the product’s layout be flexible. Note: PoE adapter is not waterproof, so it should be kept indoors or in a moisture-proof area.
📈Supports multiple encryption modes for your network security.Possess PSK, WEB, and other authentication methods, 128-bit CNSA-level algorithms and WPA encryption protocol, support WPA (TKIP), WPA-PSK, WPA2(AES) and other data encryption methods. To avoid DDOS defense network attack, protect your network data from hacking and leaking.
❤️LEADING INDUSTRY TECHNOLOGY SUPPORT – ♥♥♥BYGLO provide you lifetime aftersales service. Please feel free to contact us✉ if you have any questions. Box include: 1x Outdoor WiFi extender, 1x 24v POE Power Adapter, 1x Networking Cable, 1x Main Body Holder, 2x Metal Cable Ties, 2x 5dBi Antennas, 2x Screw Fittings, 1x Product Instruction.
