Heltec Wi-Fi HaLow Dongle Wireless Bridge 802.11ah Network Booster Long Range Wireless Access Extender Ethernet Bridge Repeater (STA)

Price: $149.99 - $69.00
(as of May 17, 2025 00:44:57 UTC – Details)

Product Description

A long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. Pair two devices for use, or work with the HaLow gateway.This long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. IEEE 802.11ah protocol, HT-HD01 operates in the unlicensed SUB-1G frequency band (902–928 MHz). It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5 Mbps.Wi-Fi HaLow is a new, low-power version of Wi-Fi designed for the Internet of Things (IoT). It follows the IEEE 802.11ah standard and builds on traditional Wi-Fi to provide an effective wireless solution that meets the needs of IoT developers. Unlike regular Wi-Fi, which uses frequencies of 2.4GHz, 5GHz, and 6GHz, Wi-Fi HaLow has a longer range and uses less power. Traditional Wi-Fi can drain battery quickly, causing the need for frequent charging or replacements. Wi-Fi HaLow reduces power use, increases range and data speeds, and supports more devices on the network without sacrificing performance.

Usage scenario 1: Work with HT-H7608 HaLow router to achieve star networking.

Introducing a wireless solution designed to provide reliable connectivity even through walls, effectively eliminating dead spots.

Our advanced mesh routers work in harmony to address the limitations often found with single routers, ensuring consistent signal strength throughout larger residential spaces. Operating within a range of up to 500 meters, this technology offers robust connectivity in expansive flats, duplexes, and villas. Enjoy seamless and dependable internet access throughout your home.

Usage scenario 2: Pairing two HT-HD01 devices for point-to-point communication.

Our wireless solution is designed to provide seamless connectivity throughout your home.

By utilizing multiple mesh routers that work in concert, we effectively eliminate dead spots typically associated with single-router setups. This technology ensures a robust signal over an extensive range of up to 500 meters, offering reliable coverage in large residential environments such as flats, duplexes, and villas. With this approach, you can enjoy a consistent and strong signal in every corner of your home, meeting the demands of modern living.

FAQ

What is the difference between AP and STA?

The hardware is completely identical, only the firmware downloaded is different. AP and STA can be converted to each other

How do you get device‘s IP address?

Look in the upstream router：Introduction — ht-h7608 latest documentationConnect to the 2.4GWi-Fi provided by the dongle and enter “192.168.1.1” or “10.42.0.1” in the browser (depending on the mode of operation of the device, if you are not sure which one to enter, you can try both). You will see the IP of the connected device and the IP of the Dongle itself.

The configuration page cannot be accessed when configured via Wi-Fi.

Do not enter the configuration mode via Wi-Fi while connecting the network cable. If this situation occurs, please unplug the power and network cable, and then re-enter the configuration mode.

Can it be directly connected to traditional routers?

Yes, AP can be directly connected to routers through Ethernet cables.

Can AP be used as a HaLow router?

Yes.

This sales link contains a pair of Dongle products, each Dongle package contains the items shown above.

The product has a wide range of applications and is mainly used for replace network cables, high amount of data, monitoring device and high concurrency scenario.

Connect easily: Factory-matched, this HaLow dongle is a plug-and-play network bridge designed to dramatically extend the transmission range of traditional networks with a low-power design for greater penetration. It’s like an ultra long-range Wi-Fi.

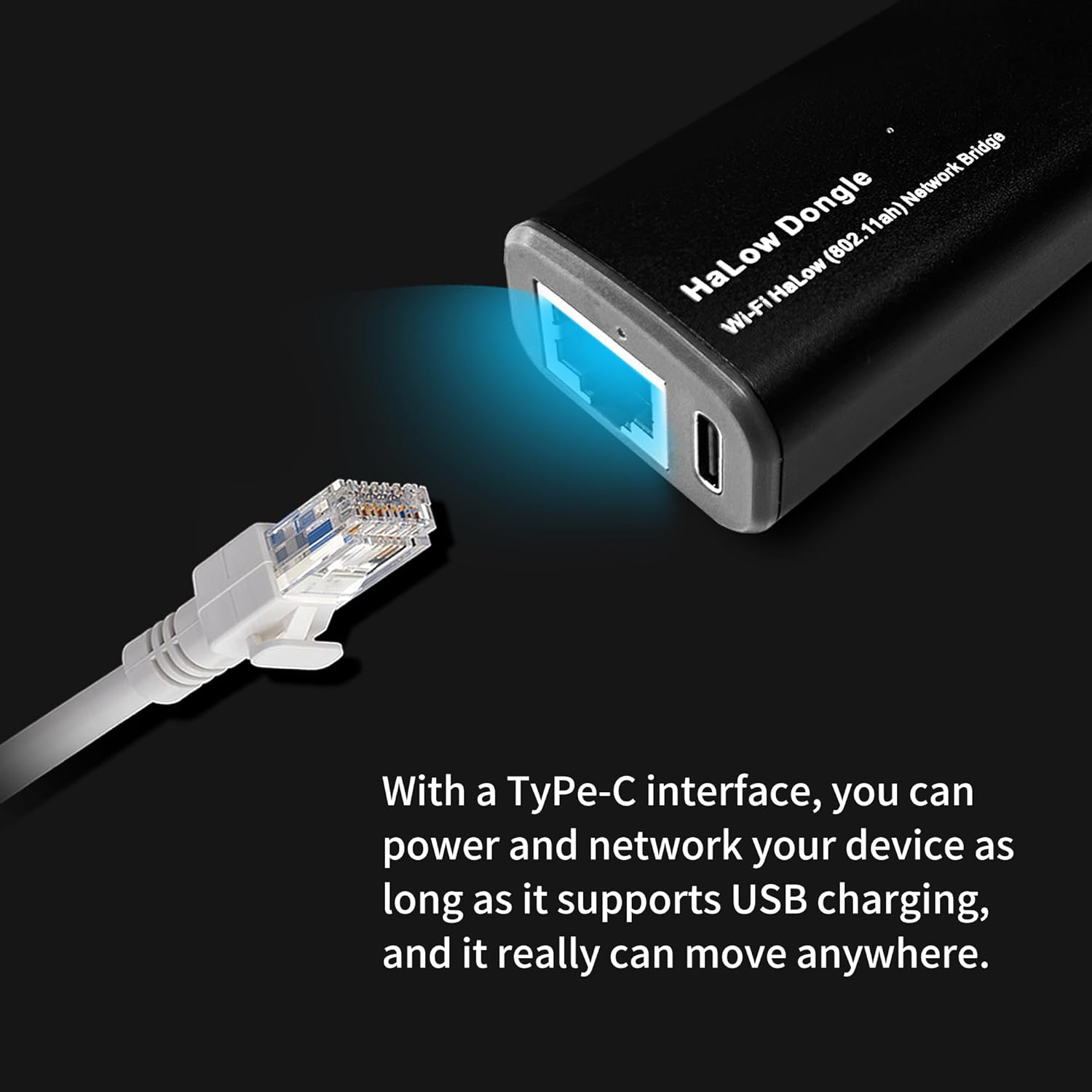

Innovative technology: The HaLow dongle integrates seamlessly with traditional Wi-Fi networks and is easy to deploy. You can connect your device to the dongle in three ways. USB Type C, Ethernet, and 2.4GHz Wi Fi, and it’s long range and scalable.
Four Bandwidth Modes: This HaLow dongle offers four bandwidth modes (1/2/4/8 MHz), a maximum transmit power of 21±1 dBm, and a data rate of up to 32.5 Mbps@8 M. It is lightweight and relatively easy to deploy.It can be more quickly connected and put to use.
Operating Frequency: The frequency range of this HaLow dongle is 902-928 MHz. The HT-HD01 adopts Wi-Fi HaLow technology and complies with the IEEE 802.11ah standard, operating in the unlicensed SUB-1G frequency band (902-928 MHz). With its rich features and large capacity, it can access a large number of devices at the same time.
Wide range of applications: This HaLow dongle is easy to configure and has a variety of operating modes. Whether for home use or IoT development, this device can significantly reduce wiring costs and increase network flexibility. Widely used in home networking and smart home and other fields.
