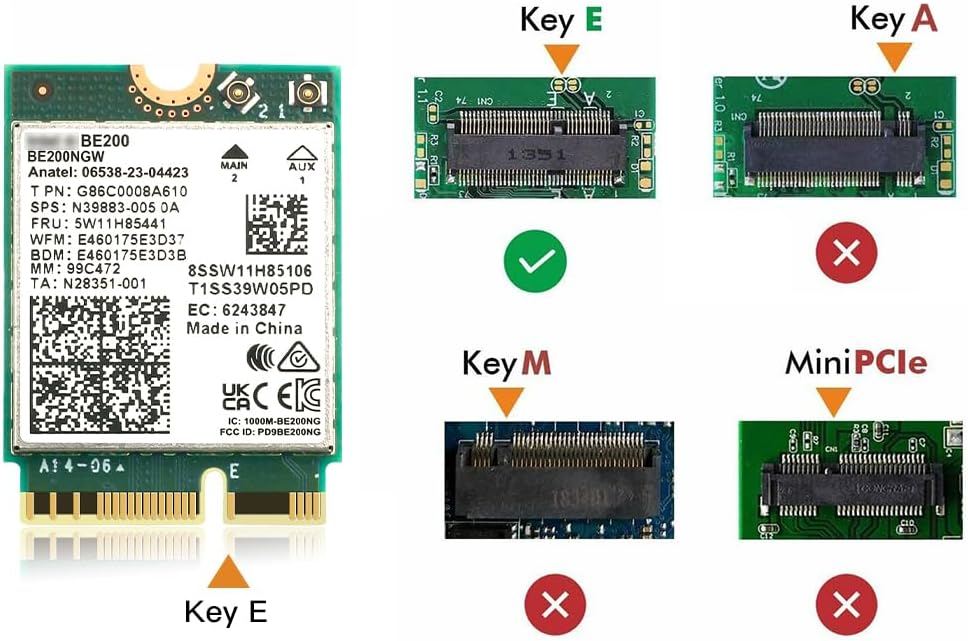

M.2 WiFi 7 Card Key E BE200 Wireless BT5.4 WiFi Network Adapter 2.4G/5G/6GHz 9.3Gbps for WiFi7/WiFi6E/WiFi6/WiFi5 Router Gaming PC Laptops Support Windows 10/11 Not Support AMD Motherboards

Price: $199.99 - $35.99
(as of Apr 30, 2025 14:07:01 UTC – Details)

WiFi 7 BE200 BE200NGW M.2 WiFi Card BT5.4 802.11BE Tri-Band 8774Mbps NGFF WiFi 7 Wireless Network Laptop New WiFi 7 Adapter for PC Windows11/10(Not Support AMD Motherboard) Specification: Model: I-n-t-e-l Wi-Fi 7 BE200 Interface: NGFF M.2 Antenna：2×2 TX/RX Streams：2×2, 320 MHz, 4K QAM Bands：2.4, 5, 6 GHz 2.4Ghz 574Mbps/5Ghz (2400Mbps)；6Ghz (320Mhz)：5.8Gbps Max Speed：5.8 Gbps Compliance: FIPS Bluetooth Version：5.4 Board Form Factor: M.2 2230, M.2 1216 System Interface Type: M.2: PCIe*, USB MU-MIMO: Yes Operating Systems: Supported Operating Systems： Windows 11*, Windows 10* Model: BE200 Interface: NGFF M.2 2230 Antenn：2×2 TX/RX Streams：2×2, 320 MHz, 4K QAM Package includes: 1*I-n-t-e-l WiFi 7 BE200NGW wifi card 1*Screwdriver 1*Plastic case 1*screw
BE200NGW is a WIFI 7 module designed and developed by Intel Corporation. This module integrates advanced wireless technology to provide high-speed and reliable wireless connectivity for various devices. With support for the latest WIFI 7 standard, the BE200 offers significant improvements in data transfer rates and network capacity compared to its predecessors.
Known as 802.11be, Wi-Fi 7 promises up to 46Gbps theoretical throughput, making it 4.8x faster than Wi-Fi 6 and 13x faster than Wi-Fi 5, while maintaining compatibility with older Wi-Fi versions at lower speeds. Wi-Fi 7 also introduces 320MHz wide bands – double that of Wi-Fi 6 thanks to channel banding – alongside 4096 QAM, an amplitude modulation scheme meant to increase link capacity to 575Mbps over a channel bandwidth of 56MHz.
The WiFi 7 BE200NGW WiFi Card supports 2×2 TX/RX streams, uses 2.4GHz, 574Mbps, 5GHz,2400Mbps, and 6GHz,5800Mbps bands, and the BE200 has a maximum speed of 5Gbit/s, which is significantly below the maximum transfer rate supported by the standard.WiFi 7 BE200NGW also supports PCIe (With a PCIe Adapter)and USB interfaces and can be used for desktop motherboards and laptops.It can also achieve “self” load balancing, using its own multi-channel advantages for concurrent data transmission. Solve the problem that WiFi 6 cannot automatically switch bands.
In theory, this WiFi 7 BE200NGW Adapter on 320MHz channels allows devices to enjoy higher single-device throughput. WiFi 6 can achieve a maximum of 160MHz, and WiFi 7 directly doubled, so that the access of digital devices can have greater wireless throughput capacity. Faster speed and lower latency. WiFi 7 can support data transmission rates of up to 30Gbps, which is equivalent to three times that of WiFi 6 and can meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing, and cloud computing scenarios.
Only support Windows 10/11 64 bit and Bluetooth 5.4 version,Bluetooth 5.4 adds LE enhanced connection Host set Controller key length function LE channel hierarchy function. Make Bluetooth 5.4 lower latency, stronger anti-interference, improve battery life. If you get and install it and you could download the driver fron I-n-t-e-l official website at the first time.
